What is the difference between the 3D flexible welding platform and the traditional welding platform?

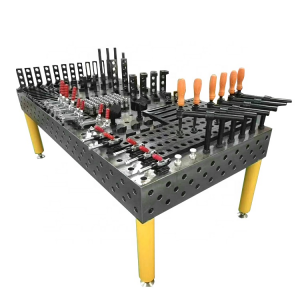

Simply put, the three-dimensional flexible welding platform is the basic platform of the three-dimensional flexible welding tooling, and it has two materials: castings and steel parts. Compared with the traditional welding platform, the three-dimensional welding platform has been expanded from one working face to five working faces. Each working face is evenly distributed with circular holes with a diameter of 16mm or 28mm. With the three-dimensional flexible welding fixture, it will need to be processed. After the workpiece is fixed and positioned, welding is performed. Flexible combined tooling is mainly embodied in flexibility, which has the following characteristics in the production and use process. , The workbench with high accuracy of assembly and flexible three-dimensional flexible combination tooling and other standard positioning and support modules have high accuracy. The worktable and various functional modules are matched with D16 or D28 round holes every 50mm or 100mm, any hole The tolerance of the hole spacing is less than 0.02mm. According to the structure of the workpiece, the complex and complex tooling combination can be completed in a short time through interchangeable modules to achieve high-precision positioning. , Timeliness, Economy The use of flexible combination tooling can save the time of designing, manufacturing, and debugging special tooling, and shorten the output time of new products. Although the price of three-dimensional flexible combination tooling is high, the cost of special tooling is also high, and the utilization rate is low, and the idle time is long. Third, less floor space. A set of three-dimensional flexible combined tooling system can reduce the storage space, because it can realize the positioning and clamping of a variety of products only by using the combination of its standard modules. Fourth, the labor cost is low. The operation of the three-dimensional flexible combination work is simple. Through simple training, ordinary technicians can complete it independently. A major feature of 3D flexible welding technology itself is “flexibility”, that is, a set of fixtures can produce several or even dozens of sets of products, and the use of different types of fixtures for new measuring tools shortens the product development time and saves a lot of money. The manpower and material resources, while mentioning, also reduce the production cost.
