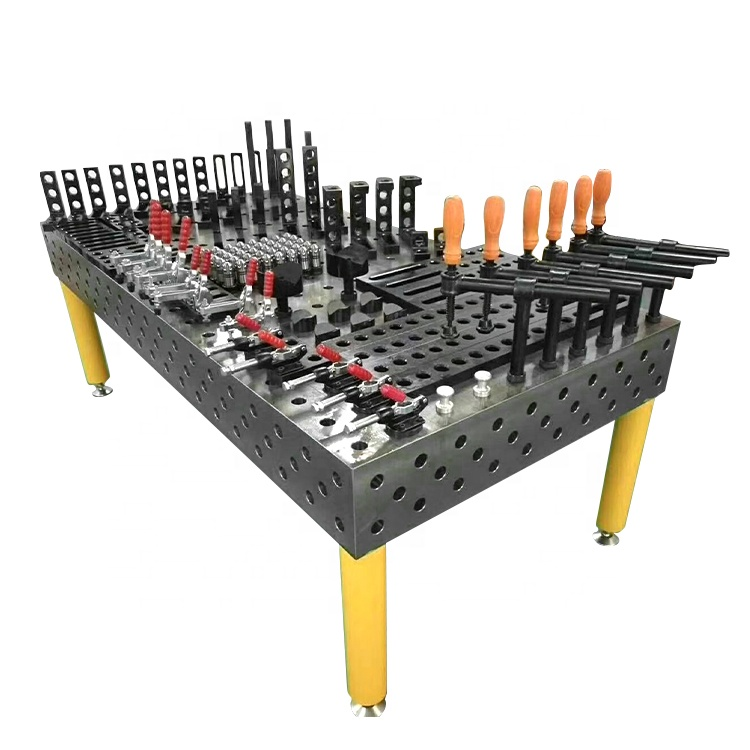

D28 3D welding table
D28 3D welding table
-D28 3D welding table specifications
For its material divided into: Steel Welding Tables and Cast iron Welding Tables
Diagonal Grid: D28
Supporting: legs, steel frame according to the requirement.
Components can be equipped after your selecting:
1, Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2, spare parts for Locating:
3, Tools for clamping and fixing
4, spare parts for locking workingpiece
5, Auxiliary Tools
Ø Introduction
-Introduce D28 3D welding table
Tables of the following sizes are in stock
|
4000x2000x200mm |
3000x2000x200mm |
|
3000x1500x200mm |
2000x1500x200mm |
|
2400x1200x200mm |
2000x1000x200mm |
|
1500x1000x200mm |
1200x1000x200mm |
|
1000x1000x200mm |
5000x2000x200mm |
|
4000x2500x200mm |
3000x2500x200mm |
|
4000x1500x200mm |
4000x1000x200mm |
|
2500x1500x200mm |
3000x1000x200mm |
|
2500x1000x200mm |
2000x2000x200mm |
|
1500x1500x200mm |
1200x1200x200mm |
We can customize tables of different sizes according to your requirements
Ø Advantages
We have both cast iron 3D welding table and steel 3D welding table to meet your needs
Perfect detail processing
Ø Main functions
-What is the purpose of the 3d Modular Welding Tables?
• Almost all the workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding.
• Imprecise dimensions of workpiece can be adjusted during preliminary working process.
• It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.
-What benefits will you get from 3D welding table?
Economical:
• Save much cost instead of reserving a lot of complicated and expensive traditional fixtures
• Applies to various working conditions without the need of any modification
• Easy and safe to operate.
Flexible:
• Solid enough to bear extremely heavy loads.
• Five surfaces, regular holes and grid lines(no inclined holes or T-shaped grooves)
• Any workpiece can be fixed and clamped on the table with locating pins
• 3D welding tables can link together against any of its five surfaces.
Precise:
• Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding
• Imprecise dimensions of workpiece can be adjusted during preliminary working process.
